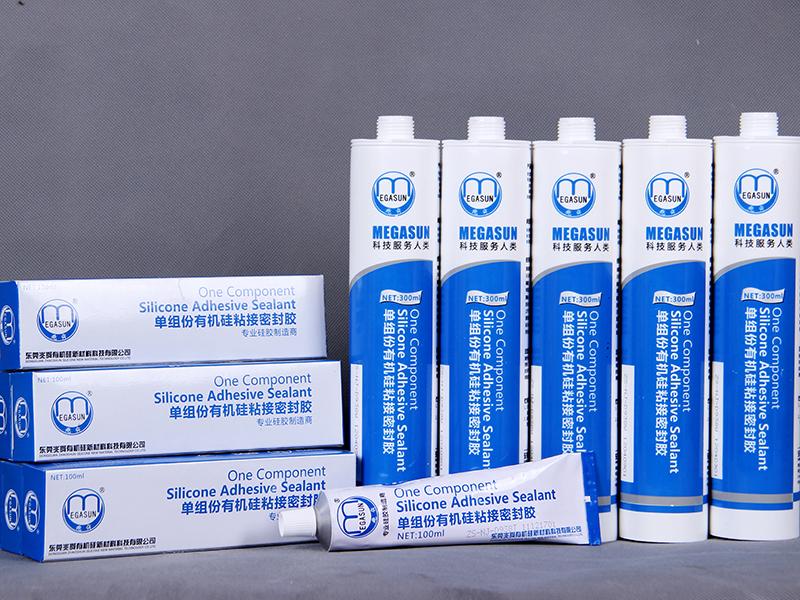

Flame Retardant RTV Silicone Adhesive Sealant, ZS-NJ-D959W03

ZS-NJ-D959W03 RTV Silicone Adhesive Sealant

Flame Retardant RTV Silicone Adhesive Sealant, ZS-NJ-D959W03
Description

ZS-NJ-D959W03 RTV silicone adhesive sealant is designed as a flame-retarding, single-component, dealcoholized product curing at room temperature. This product is ideal to provide good adhesion to metals like aluminum, copper, stainless steel, etc. Besides, this sealant has high strength, excellent dielectric property, wide operating temperature range of -60℃～200℃. Fully meets EU RoHS standards.

Typical applications
  • Power modules: fixing connectors on circuit board
  • Sealing, fixing and shock-resisting of electronic elements, like high-voltage component, plug, rectifier tube, capacitor
Technical specs
Uncured properties Appearance White, paste
Tack free time (min) ≤15
Extrusion rate (g/s, 25℃) 45~55
Cure through time (d) 3～7
Cured properties Specific gravity (g/cm3) 1.55～1.65
Hardness (Shore A) 50～60
Tensile strength (MPa) ≥2.0
Shear strength (MPa) ≥2.0
Elongation (%) ≥70
Temperature resistance (℃) -60～200
Volume resistivity (Ω·cm) ≥1.0×1014
Dielectric Strength (kV/mm) ≥13
Flame retardant rating UL94 V-0
Note:
  • The performance data above are measured 7days after curing at 25℃ and 55% relative humidity.
  • The product cures tack free more slowly as the storage time increases.
  • Zhaoshun cannot assume responsibility for different results obtained under different conditions or caused by product improvement.
