High Strength Silicone Adhesive, ZS-NJ-D959W13

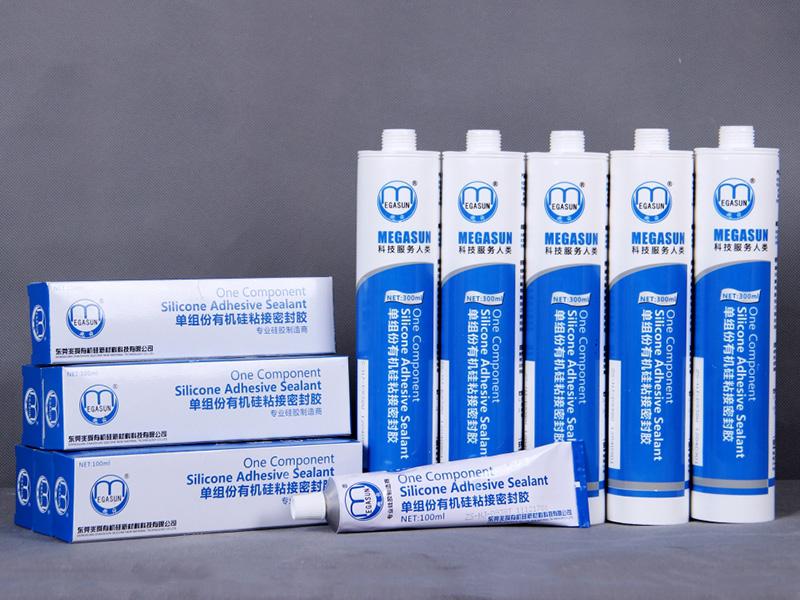

ZS-NJ-D959W13G RTV Silicone Adhesive Sealant

High Strength Silicone Adhesive, ZS-NJ-D959W13
Description

The ZS-NJ-D959W13G RTV silicone adhesive sealant is a single-component, room-temperature curing, dealcoholized silicone sealant. It offers outstanding adhesion to numerous substrates including metals and plastics like aluminum, copper, stainless, PC, ABS, andmore. This product also has an excellent dielectric property and thermal resistance, with an operating temperature range of -60℃～200℃. Alcohols occur during the curing process, and it is non-corrosive to PC, copper, and more. Conforms to EU RoHS standards.

Typical applications
  • Adhering and fixing LED lamps and lanterns
  • Bonding, sealing and fixing electronic components
Technical specs
Uncured properties Appearance White, paste
Tack free time (min) ≤15
Extrusion rate (g/s, 25℃) 20~30
Cure through time (d) 3～7
Cured properties Specific gravity (g/cm3) 1.35～1.45
Hardness (Shore A) 25～35
Tensile strength (MPa) ≥1.8
Shear strength (MPa) ≥1.8
Elongation (%) ≥600
Temperature resistance (℃) -60～200
Volume resistivity (Ω·cm) ≥1.0×1014
Dielectric Strength (kV/mm) ≥13
Note:
  • The performance data above are measured 7days after curing at 25℃ and 55% relative humidity.
  • The product cures tack free more slowly as the storage time increases.
  • Zhaoshun cannot assume responsibility for different results obtained under different conditions or caused by product improvement.
