High Strength Silicone Conformal Coating, ZS-NJ-D955

High Strength Silicone Conformal Coating, ZS-NJ-D955

High Strength Silicone Conformal Coating, ZS-NJ-D955
Description

The ZS-NJ-D955 RTV silicone conformal coating is a one part, low viscosity, room-temperature curing product.

  • Cures to a tough, abrasion-resistant layer.
  • The ZS-NJ-D955 RTV silicone conformal coating can be cured at a specific temperature or accelerated via solventless heating (less than 60℃).
  • UV indicators are available to detect whether the coating is fully completed.
Typical applications

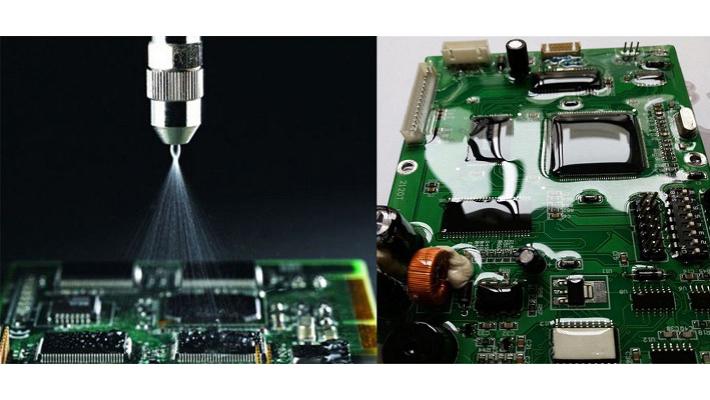

Protective coating for thick film circuitry, porous substrate and PCB.

Technical specs
Uncured properties Appearance Transparent or translucent, flowable
Viscosity (cps) 900~1100
Tack free time (min) ≤10
Specific gravity (g/cm3) 1.05～1.15
Cured properties Hardness (Shore A) 78～88
Tensile strength (MPa) ≥2.5
Elongation (%) ≥50
Volume resistivity (Ω·cm) ≥2.5×1013
Dielectric Strength (kV/mm) ≥13
Dielectric constant (100kHz) ≤2.5
Note:
  • The performance data above are measured 7days after curing at 25℃ and 55% relative humidity.
  • Zhaoshun cannot assume responsibility for different results obtained under different conditions or caused by product improvement.
