Low Viscosity Electrical Potting Compounds, ZS-GF-5299E

ZS-GF-5299E RTV Silicone Potting Compounds

Low Viscosity Electrical Potting Compounds, ZS-GF-5299E
Description

The ZS-GF-5299E RTV silicone potting compounds is a low viscosity, two-component product for sensor potting. It cures at room temperature or via heating, and features a faster curing at higher temperatures, with no byproduct production during curing. This allows it to be used for substrates on metals and plastics such as PC (Poly-carbonate), PP, ABS, PVC and more. Temperature range of -60℃ to 220℃, and fully satisfies EU RoHS and REACH standards.

Typical applications
  • Potting, encapsulating and thermal protection of sensors

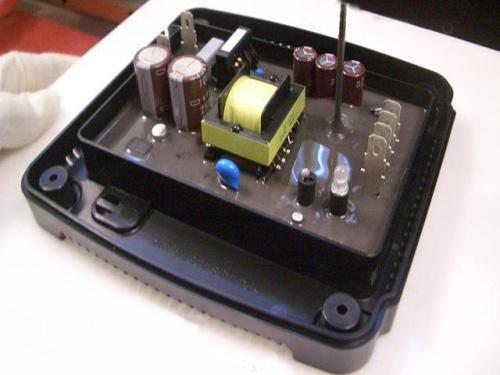

  • Potting, encapsulating and thermal protection of electrical and electronic components like power modules
Technical specs
Performance index Component A Component B
Uncured properties Appearance Black, gray, white fluid White fluid
Viscosity (cps) 1500～2500 1500～2500
Mix ratio/A:B by weight 1∶1
Mixing viscosity (cps) 1500～2500
Working time at room temperature (min) 30-50
Cure time at room temperature T (h) T+5℃: 1-3
T: 3-5
T-5℃: 5-9
Cured properties Hardness (Shore A) 40-50
Thermal conductivity[W/m.K] ≥0.6
Dielectric Strength (kV/mm) ≥15
Dielectric constant (1.0MHz) 2.4～3.0
Volume resistivity (Ω·cm) ≥1.0×1013
Specific gravity (g/cm3) 1.56±0.02
Note:
  • The above uncured properties are measured at room temperature where the product is produced.
  • Mechanical and electrical properties are tested after the products are fully cured.
