Solvent-Free Silicone Modified Conformal Coating, ZS-NJ-D916XX-1

ZS-NJ-D916XX-1 RTV Silicone Conformal Coating

Solvent-Free Silicone Modified Conformal Coating, ZS-NJ-D916XX-1
Description
  • The NJ-D916XX-1 RTV silicone conformal coating is a single-component silicone sealant, which can be cured at room temperature or accelerated by heat.

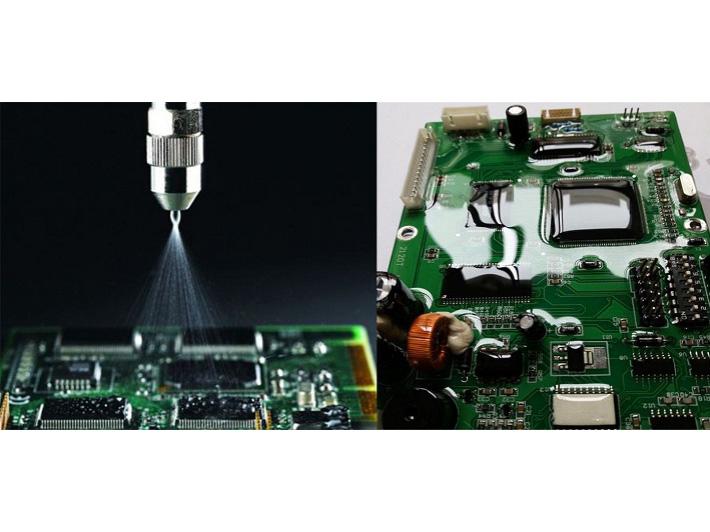

  • The ZS-NJ-D916XX-1 RTV silicone conformal coating features a low viscosity, making it easier for spray coating, dip-coating, brush coating or flow coating.
  • Clear, transparent, low odor
  • An outstanding temperature resistance allows this silicone conformal coating to retain its stability under a service temperature of -60℃～200℃.
  • Conforms to EU RoHS and REACH standards.
Typical applications

This coating can be used to form a protective film layer onto electronic components and circuit boards for an excellent resistance to corrosion, dust, moisture, electricity leakage, short circuit, thermal shock, aging, and salt mist, and extends the service life.

Technical specs
Uncured properties Appearance Translucent or canary, flowable
Tack free time (min)/25℃, 60%RH ≤30
Viscosity (cps) 700~1300
Cure through time (d) 3～7
Cured properties Hardness (Shore A) 15～30
Specific gravity (g/cm3) 0.95～1.05
Temperature resistance (℃) -60～200
Volume resistivity (Ω·cm) ≥1.0×1013
Dielectric Strength (kV/mm) ≥13
Note:
  • The performance data above are measured 7days after curing at 25℃ and 55% relative humidity.
  • Zhaoshun cannot assume responsibility for different results obtained under different conditions or caused by product improvement.
