Thermally Conductive Silicone Adhesive, ZS-NJ-D959W02

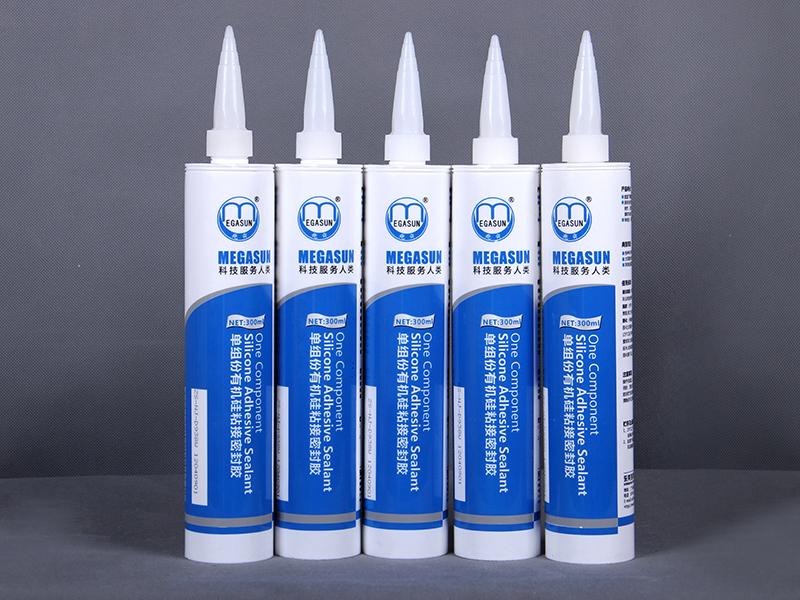

ZS-NJ-D959W02 RTV Silicone Adhesive Sealant

Thermally Conductive Silicone Adhesive, ZS-NJ-D959W02
Description

ZS-NJ-D959W02 RTV silicone adhesive sealant is a one-component room-temperature curing, dealcoholized silicone product. With good thermal conductivity and flammability, this sealant offers outstanding adhesion to many metals like aluminum, copper, stainless steel, etc. This product also features excellent dielectric property, good heat resistance and a wide operating temperature range of -60℃～200℃. During curing, this product produces alcohols which are non-corrosive to PC, copper and other materials. Conforms to EU RoHS standards.

Typical applications

Fixing, flame retarding, heat conducting, insulating, shock proof, waterproof sealing of electronic and electrical components

Technical specs
Uncured properties Appearance White, paste
Tack free time (min) ≤15
Extrusion rate (g/s, 25℃) 25~40
Cure through time (d) 3～7
Cured properties Specific gravity (g/cm3) 2.10～2.20
Hardness (Shore A) 70～80
Tensile strength (MPa) ≥2.0
Shear strength (MPa) ≥2.0
Elongation (%) ≥70
Temperature resistance (℃) -60～200
Volume resistivity (Ω·cm) ≥1.0×1012
Dielectric Strength (kV/mm) ≥15
Thermal Conductivity [W/(m·k)] ≥1.0
Flame retardant rating UL94V0
Note:
  • The performance data above are measured 7days after curing at 25℃ and 55% relative humidity.
  • The product cures tack free more slowly as the storage time increases.
  • Zhaoshun cannot assume responsibility for different results obtained under different
