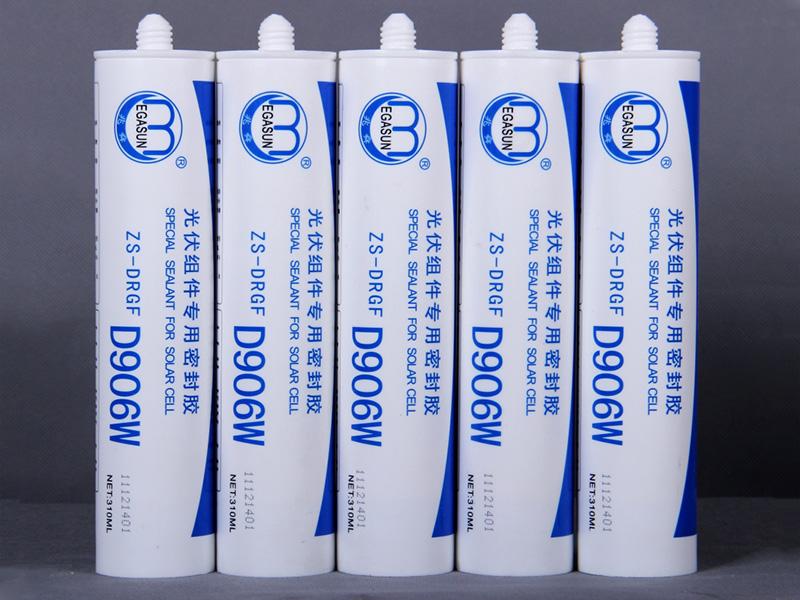

ZS-GF-D906W RTV Silicone Adhesive Sealant

High Performance RTV Silicone Adhesive Sealant, ZS-GF-D906W

Description

ZS-GF-D906W RTV silicone adhesive sealant is a one-component white paste specially designed for solar modules. It has outstanding electrical insulating properties and excellent resistance to thermal cycles, aging, moisture, shock, corona, electric leakage. Retains elastomeric properties and stability throughout the operating temperature range of -60～200℃. This product conforms with EU ROHS and REACH standards.

Typical applications

Bonding and sealing of:

Aluminum frames of solar PV module
Terminal box to TPT/TPE
Glass and metal frame on the back of thin-film solar cells
LED lamps and solar modules

Technical specs

Uncured properties	Appearance	White, paste
	Tack free time (min)	≤10
	Extrusion rate (g/s, 25℃)	17~25
	Cure through time (d)	3～7
Cured properties	Specific gravity (g/cm3)	1.50～1.60
	Hardness (Shore A)	40～60
	Tensile strength (MPa)	≥2.0
	Shear strength (MPa)	≥1.5
	Elongation (%)	≥250
	Temperature resistance (℃)	-60～200
	Volume resistivity (Ω·cm)	≥1.0×1014
	Dielectric Strength (kV/mm)	≥13
	Dielectric constant (1.0MHz)	3.0~3.9
	Flame retardant rating	UL94 HB

Note:

The performance data above are measured for 7days after curing at 25℃ and 55% relative humidity.
The product cures tack free more slowly as the storage time increases.
Zhaoshun cannot assume responsibility for different results obtained under different conditions or caused by product improvement.
