ZS-NJ-D935BL RTV Silicone Adhesive Sealant

Black Non-Corrosive Silicone Adhesive and Sealant, ZS-NJ-D935BL

Description

ZS-NJ-D935BL RTV silicone adhesive sealant is a one-component, room-temperature curing, dealcoholized silicone sealant. This product provides good adhesion to many substrates like aluminum, copper, stainless steel, ceramic, etc. Superior dielectric properties and heat resistance make this product applicable at a temperature range of -60℃～200℃. During curing, alcohols will be realized that is non-corrosive to materials like PC, copper and so on. Meets the requirements of EU RoHS.

Typical applications

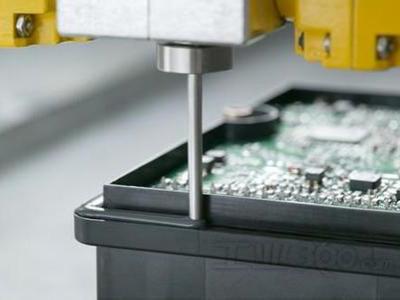

Bonding, sealing and fixing electronic components

Technical specs

Uncured properties	Appearance	Black, paste
	Tack free time (min)	≤15
	Cure through time (d)	3～7
Cured properties	Specific gravity (g/cm3)	1.45～1.55
	Hardness (Shore A)	45～55
	Tensile strength (MPa)	≥2.0
	Shear strength (MPa)	≥1.5
	Elongation (%)	≥150
	Temperature resistance (℃)	-60～200
	Volume resistivity (Ω·cm)	≥1.0×1013
	Dielectric Strength (kV/mm)	≥13
	Flame retardant rating	UL94 V-0

Note:

The performance data above are tested 7days after curing at 25℃ and 55% relative humidity.
The product cures tack free more slowly as the storage time increa
Zhaoshun cannot assume responsibility for actual values obtained under different conditions or caused by product improvement.
